How Custom Sheet Metal Bracket Design Engineering Streamlines Server Rack Assembly？

In the fast-paced world of data centers, industrial automation, and telecommunications, assembly time is a critical cost factor. When engineers design complex 19-inch server racks or industrial electrical cabinets, they increasingly demand components that facilitate rapid, plug-and-play installation. This is where the highly engineered Custom Sheet Metal Mounting Bracket comes into play.

Unlike standard external enclosures that prioritize aesthetics, internal chassis trays and slide brackets are strictly about precision, structural rigidity, and seamless integration. At Huapusheng (HPS), we leverage our advanced manufacturing facility to deliver highly accurate components that eliminate assembly bottlenecks. Let's explore the engineering and fabrication processes required to produce these critical structural elements.

1. The Anatomy Of A Tool-Less Mounting Bracket

The transition from traditional bolt-on assemblies to tool-less designs is revolutionizing the IT and telecom hardware sectors. A premium Server Rack Internal Mounting Plate often features a combination of U-shaped interlocking hooks, locating tabs, and complex keyhole slots.

These features allow technicians to slide and lock heavy IT equipment, battery modules, or power supplies into place within seconds, without the need for screwdrivers or specialized tools. However, designing a tool-less bracket introduces immense manufacturing challenges. If an interlocking hook is off by merely 0.1mm, the bracket will either fail to engage with the chassis rails or rattle under vibration.

2. CNC Precision: Achieving ISO 2768-m Tolerances

To guarantee the perfect alignment required for tool-less installation, fabrication partners must possess state-of-the-art cutting equipment. We utilize advanced CNC turret punch presses and high-powered fiber lasers to cut complex slot geometries into pre-galvanized steel (SGCC) or cold-rolled steel (SPCC) sheets.

Our automated turret punching systems are particularly effective for stamping repetitive arrays of keyholes and ventilation louvers rapidly and accurately. By adhering strictly to ISO 2768-m machining tolerances, we ensure that every single slot and locating pin aligns perfectly with your proprietary mating components, facilitating a truly seamless assembly experience.

3. Structural Integrity Through Multi-Axis Bending

Internal chassis trays frequently bear substantial loads, supporting dense electronics, copper transformers, or heavy lithium-ion battery packs. A flat sheet of metal lacks the necessary rigidity to handle these weights without deflecting or bending over time.

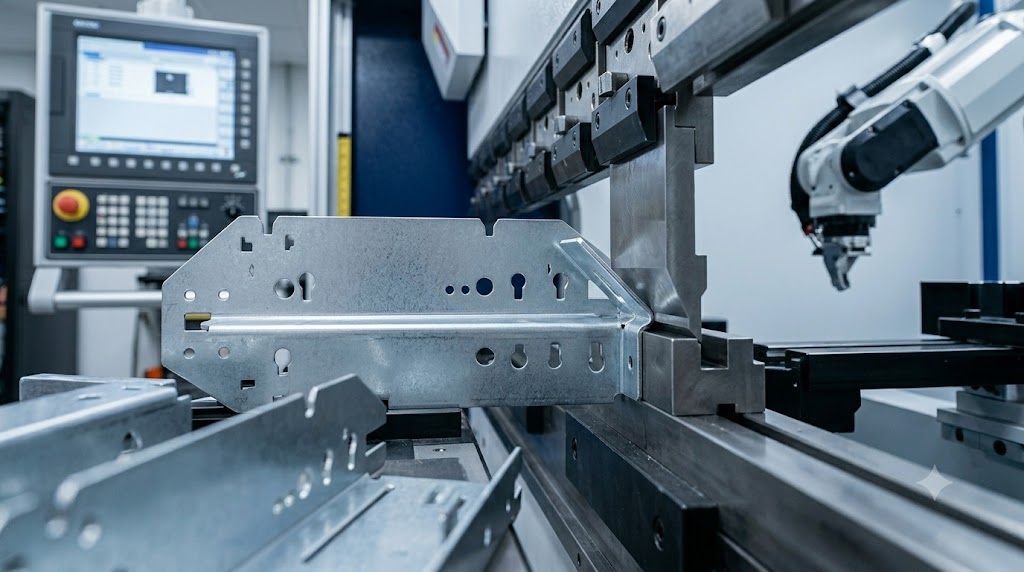

To counteract this, our engineers employ multi-axis CNC press brake forming. By folding the edges of the bracket into specific flanged profiles (such as C-channels or U-bends), we geometrically multiply the load-bearing capacity of the component. Our collaborative Design for Manufacturability (DFM) approach also calculates exact bend deductions, ensuring that the overall dimensional accuracy remains perfect after the flat pattern is folded into its 3D state.

4. The Value Of Turnkey Sheet Metal Fabrication Services

For large-scale equipment manufacturers, managing multiple suppliers for cutting, bending, surface treatment, and final hardware installation is an unnecessary logistical nightmare. Sourcing a reliable OEM Sheet Metal Fabrication Partner capable of handling the entire production cycle under one roof is a strategic advantage.

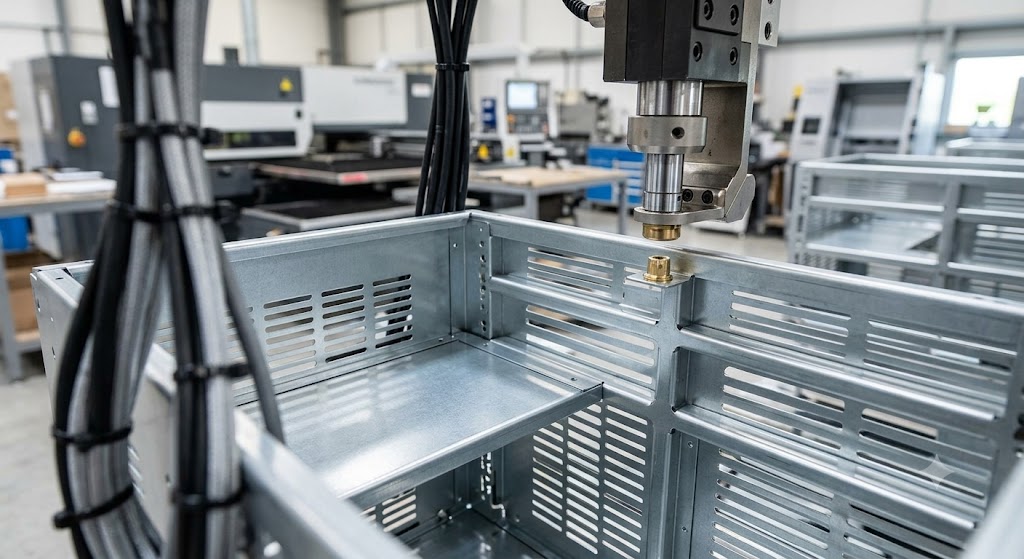

HPS provides true Turnkey Sheet Metal Fabrication Services. We don't just supply the stamped metal tray; we offer Complete Sheet Metal Assembly Services. This includes the automated insertion of PEM fasteners, captive screws, and threaded standoffs before the parts ever leave our facility. Your components arrive at your assembly line completely ready for electronic integration.

Standard Manufacturing Parameters For Internal Brackets

To ensure optimal performance and cost-efficiency for internal structural components, we adhere to the following standard fabrication parameters:

Frequently Asked Questions (FAQ)

The efficiency of deploying modern server racks and industrial control panels relies heavily on the precision of internal mounting brackets. By leveraging advanced CNC punching, rigorous tolerance control, and comprehensive turnkey assembly, HPS provides structural solutions that eliminate tool dependency and accelerate your production cycle. Ready to optimize your next electromechanical integration project? Consult with the custom sheet metal fabrication experts at HPS today.
