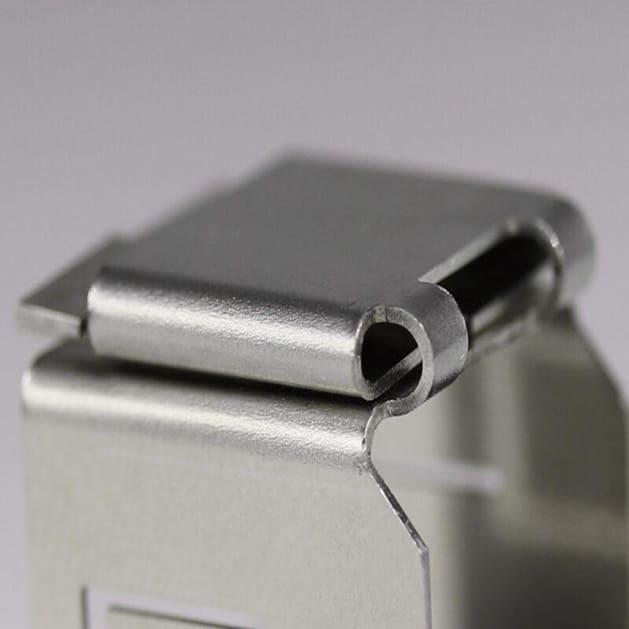

This Custom Bent Sheet Metal Bracket With Curled Hinge is engineered for high-durability industrial applications requiring reliable pivoting mechanisms or secure mounting interfaces. Manufactured using advanced CNC bending and precision metal rolling techniques, this heavy-duty component eliminates the need for multi-part assembly by integrating a seamlessly curled hinge loop directly onto the structured bracket body.
Material :
Cold Rolled Steel (SPCC), Galvanized Steel (SECC/SGCC), Aluminum AlloySurface Treatment :
Anti-Rust Zinc Plating, Industrial Powder Coating, Custom Color MatchingProcess Involved :
Laser Cutting / Blanking, Deburring & Edge Smoothing, CNC Bending / Flange Shaping, Hinge Rolling / CurlingOEM Custom Sheet Metal Bracket With Curled Hinge
High Precision • Precision Stamping • Custom Design
Product Overview
Precision CNC Bending & Tolerances: Engineered with state-of-the-art CNC press brakes, this custom bent sheet metal bracket maintains stable dimensional accuracy up to $\pm$0.1 mm. The precise bending angles ensure flawless hardware alignment and rapid integration into complex mechanical assemblies, industrial control enclosures, or server racks without structural distortion.
Integrated Curled Hinge Mechanics: Featuring an integrated curled hinge loop formed by advanced sheet metal rolling technology, this heavy-duty bracket provides a seamless pivoting interface. The perfectly cylindrical hinge barrel eliminates the need for welding multiple parts, facilitating smooth and continuous rotation for hinge pins, enclosure doors, or modular linkages.
Structural Integrity & Stress Minimization: Fabricated with strategic material-grain alignment along the high-stress radius of the curled edge, this custom metal component provides exceptional mechanical strength. The precision-stamped curl reduces stress concentration, effectively preventing material fatigue and micro-cracking during long-term operational loads in demanding environments.
Product Specifications
| Specification | Details |
| Primary Materials | Cold Rolled Steel (SPCC), Aluminum Alloy (AL5052), Galvanized Steel (SGCC), Stainless Steel (SUS304) |
| Fabrication Processes | Fiber Laser Cutting, Precision CNC Bending, Sheet Metal Rolling (Hinge Curling), Deburring & Edge Smoothing |
| Surface Treatment | Natural Finish (Passivated for Stainless Steel), Industrial Powder Coating, Zinc Plating, Anodizing (Aluminum options) |
| Ventilation Style | Integrated Rolled Hinge Barrel (Standard). Customizable Barrel Diameters and Lengths to suit custom hinge pins. |
| Tolerance Standards | ISO 2768-m (Tight dimensional tolerances down to $\pm$0.1mm for accurate pivoting and mounting alignment) |
What Can Be Customized
| Customization Aspects | Specific Parameters & Capabilities |
| Dimensions & Bending Profiles | Fully tailored overall lengths, bracket widths, and specific flange angles to fit custom industrial chassis, housing units, or mechanical setups. |
| Hinge Loop Geometry | Adjustable barrel inner/outer diameters, curl lengths, and gap spacing configured to match proprietary pin sizes and pivoting specifications. |
| Material Options & Gauges | Choice of high-grade Stainless Steel (SUS304, 316), Cold Rolled Steel (SPCC), or Aluminum Alloy with customizable sheet metal thicknesses. |
Application Industries
Why Partner with Huapusheng?
✔ High-Precision Bending & Tolerances: Our advanced CNC sheet metal fabrication techniques and high-end press brakes are engineered to achieve a stable dimensional accuracy within $\pm$0.1 mm. This eliminates layout alignment errors during final assembly, ensuring every custom bent bracket interfaces flawlessly with your industrial enclosures or chassis structures.
✔ Seamless Hinge Curling Technology: We utilize proprietary material-grain alignment and advanced metal rolling processes to form seamless curled hinge barrels directly onto the structured bracket body. This integrated custom forming method eliminates the need for post-welding, minimizing micro-cracking and material fatigue at high-stress pivot points.
✔ Burr-Free & Clean Edge Processing: By deploying high-precision fiber laser cutting systems integrated with automated mechanical deburring lines, we guarantee 100% clean and dross-free component edges. This high-standard finish effectively protects internal wiring from abrasion damage and enhances handling safety for your production technicians.
✔ Flexible DFM & Tailored Customization: Our engineering team offers profound Design for Manufacturability (DFM) support to seamlessly translate your 2D/3D CAD drawings (STEP, DXF) into optimized metal blanks. We specialize in high-mix, low-volume custom configurations, accommodating various sheet metal gauges, custom flange angles, and tailored barrel geometries.
The W4 custom stainless steel flange weldment combines precision CNC machining with expert TIG welding. Featuring a robust machined base with threaded mounting holes and a seamlessly welded central cylinder, this component offers exceptional structural integrity and corrosion resistance for demanding fluid handling or heavy-duty mounting applications.
Details
Built to exact OEM specifications W3, this custom heavy-duty machine base frame integrates precision laser cutting, CNC bending, and industrial-grade welding. Featuring a robust open-frame design with pre-drilled mounting points and reinforced footings, it provides maximum structural rigidity and vibration resistance for heavy equipment assembly and industrial manufacturing environments.
Details
This custom industrial equipment cabinet structural frame serves as a high-strength foundation for heavy machinery, power distribution units, and automation systems. Fabricated from premium, heavy-gauge industrial metals, the precision-welded skeleton features a reinforced base plate engineered to handle extreme static payloads without deflection. With CNC-punched mounting patterns and strict dimensional tolerances achieved through advanced laser cutting, this core framework ensures exact alignment for the final assembly of exterior panels, doors, and internal electronics.
Details
Engineered for sophisticated automated equipment, this multi-tier custom sheet metal chassis provides highly accurate mounting zones for internal electronics and electromechanical systems. Fabricated through precision CNC punching and bending, the frame is delivered as a turnkey mechanical assembly complete with pre-installed hardware (PEM nuts, rails, and standoffs), drastically reducing your final production time.
Details
Engineered to integrate seamlessly with sophisticated automated equipment, this Custom P11 Sheet Metal Fabrication Steel Shaft Assembly delivers an exceptional mechanical solution for high-precision industrial applications. Combining robust sheet metal bending with precision CNC-machined steel shafting, this heavy-duty component provides highly accurate mounting zones and structural support for internal electromechanical systems.
Details

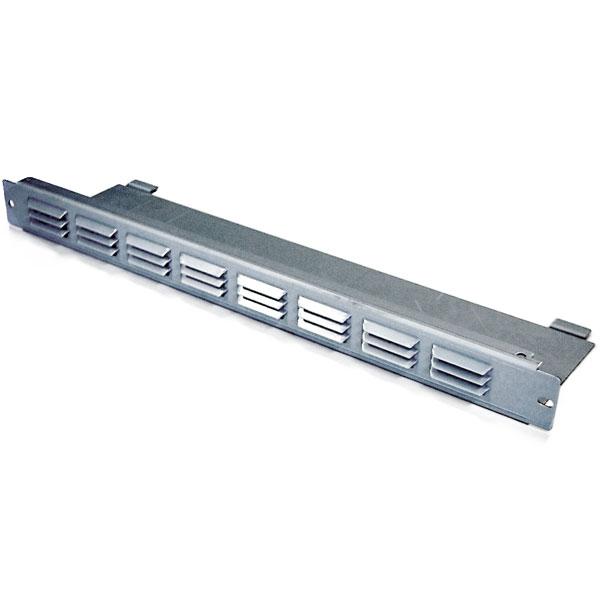

This custom sheet metal louvered ventilation panel is engineered for optimal thermal management in standard 19-inch equipment racks and custom industrial enclosures. Manufactured utilizing precision CNC turret punching and rigid bending techniques, the panel features double-row stamped louvers that maximize airflow while preventing structural sagging. Available in cold-rolled steel, aluminum, and stainless steel with customizable powder-coated finishes, it provides a highly durable, EIA-310 compliant cooling solution for data centers, telecom cabinets, and industrial power distribution systems.
Details
This custom sheet metal louvered ventilation panel is engineered for optimal thermal management in standard 19-inch equipment racks and custom industrial enclosures. Manufactured utilizing precision CNC turret punching and rigid bending techniques, the panel features double-row stamped louvers that maximize airflow while preventing structural sagging. Available in cold-rolled steel, aluminum, and stainless steel with customizable powder-coated finishes, it provides a highly durable, EIA-310 compliant cooling solution for data centers, telecom cabinets, and industrial power distribution systems.
Details
This Custom Bent Sheet Metal Bracket With Curled Hinge is engineered for high-durability industrial applications requiring reliable pivoting mechanisms or secure mounting interfaces. Manufactured using advanced CNC bending and precision metal rolling techniques, this heavy-duty component eliminates the need for multi-part assembly by integrating a seamlessly curled hinge loop directly onto the structured bracket body.
Details
